DF150 AP
Product Overview
The Suzuki DF150 AP utilizes the Drive by Wire Suzuki Precision Control System for easy, smooth and precise throttle and shift operation; and Suzuki Selective Rotation which enables the outboard to operate in either clockwise standard rotation or counterclockwise rotation. This motor is based on an inline four-cylinder DOHC powerhead with 2,867 cm3 displacement. The large displacement produces exceptional acceleration and torque, without making the motor larger or heavier in size. This is one of the most versatile four strokes in the 150 HP class.
Features
• 02 Sensor Feedback Control System
• Multi Point Sequential Electronic Fuel Injection
• Suzuki Selective Rotation
• Multi-Stage Induction System
• Suzuki Precision Control System
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Thrust Mount System
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Fresh Water Flushing System
• Power and Trim Tilt
• Tilt Limit
• Speedometer Pickup of Gear Case
• Suzuki Anti-Corrosion
Specifications
• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
• Starting System: Electric
• Weight: Mechanical: L: 511 lbs, X: 522 lbs / Drive by Wire: L: 520 lbs, X: 531 lbs
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: 4
• Piston Displacement inches (cc): 174.9 (2867)
• Bore X Stroke Inches (mm): 3.81 x 3.81 (97 x 97)
• Maximum Output HP: 150
• Operating Range (RPM): 5000-6000
• Steering: Remote
• Oil Pan Capacity quarts (liter): 8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 12V 44A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.50:1
• Propeller Selection: 17-19
DF150APL2
20″ shaft, Black Cowling, Standard or Counter
DF150APLW2
20″ shaft, White Cowling, Standard or Counter

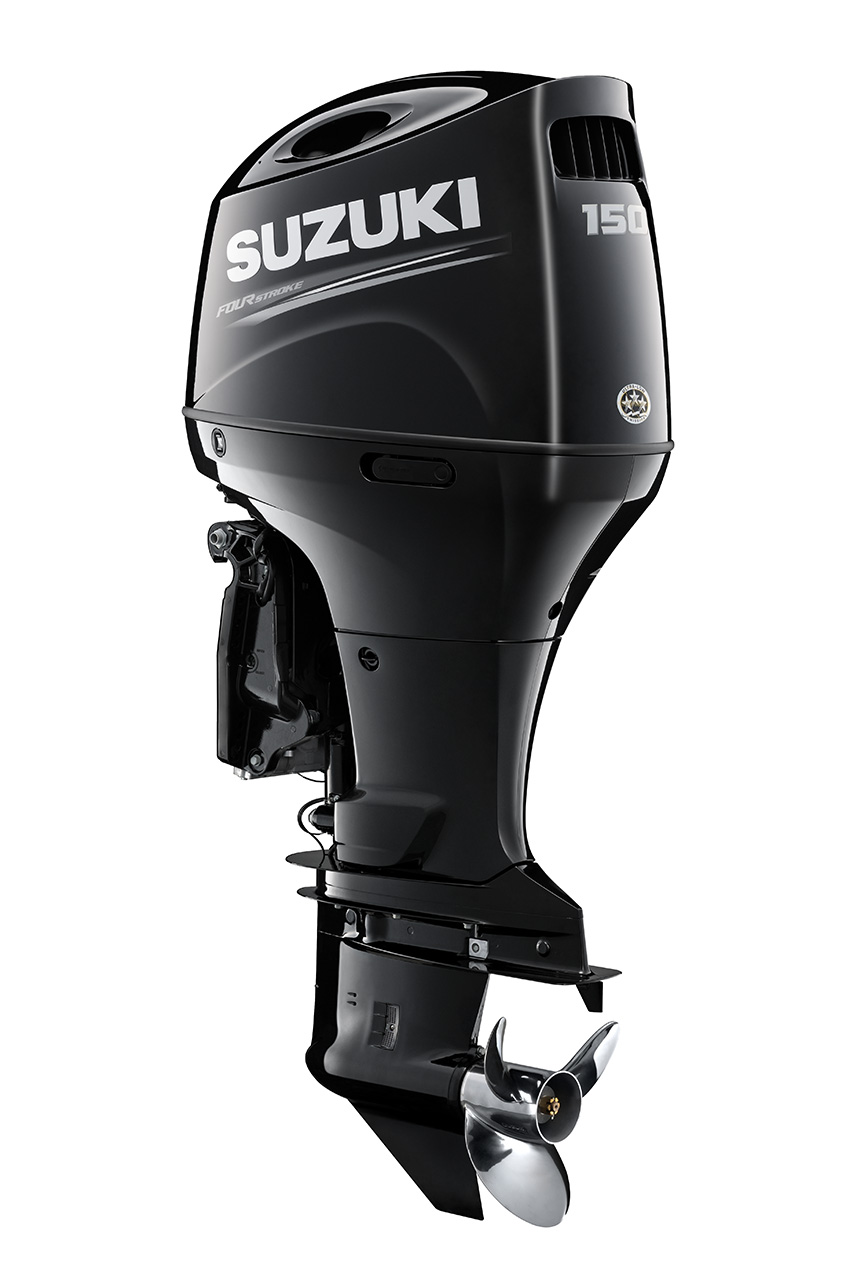

DF150APX2
25″ shaft, Black Cowling, Standard or Counter

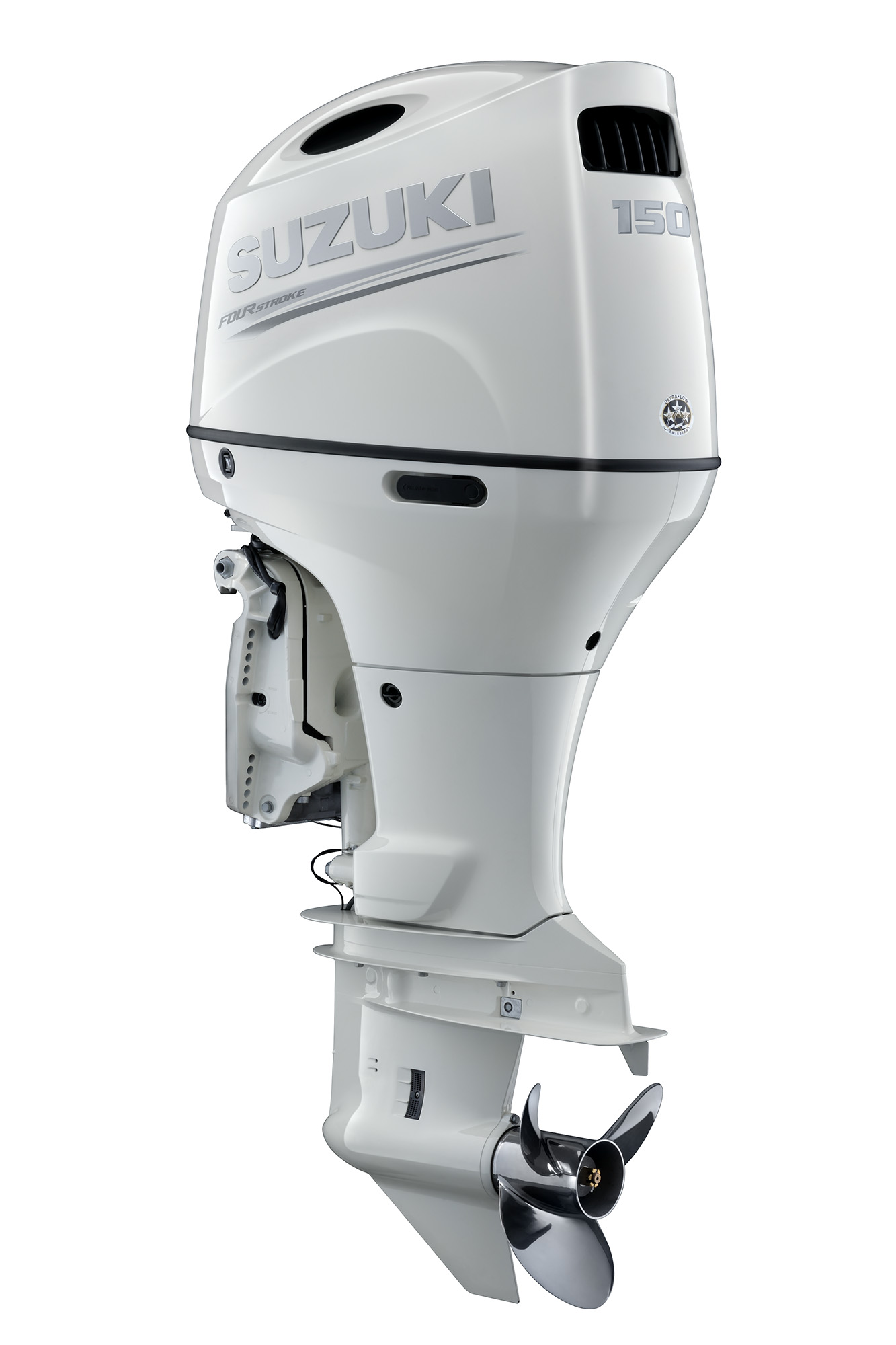

DF150APXW2
25″ shaft, White Cowling, Standard or Counter
