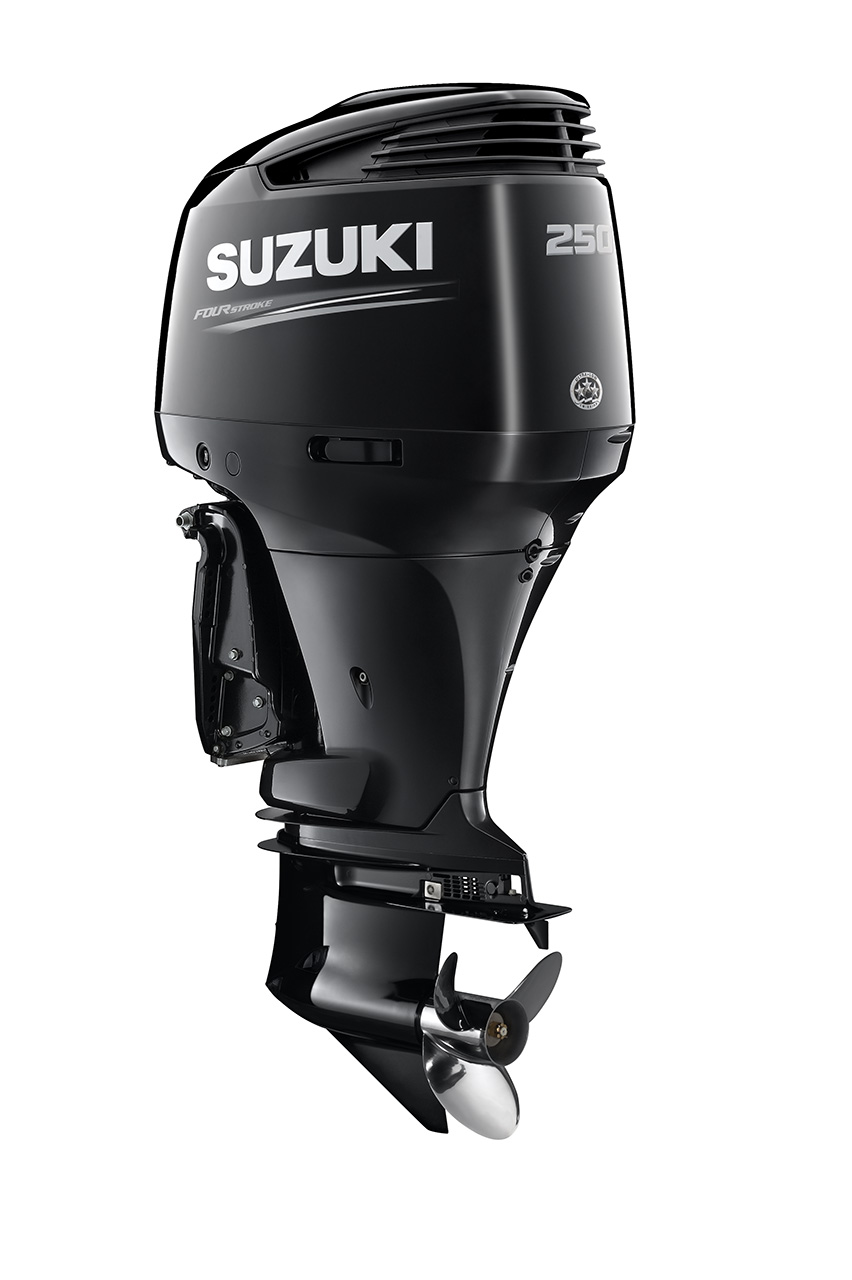

DF250 APX
Product Overview
“The Ultimate 4-Stroke Outboard,” the DF250AP shares the same award winning innovations and designs of Suzuki’s flagship outboard. Advanced features such as Suzuki Selective Rotation, Suzuki Precision Control and Suzuki Lean Burn Control, plus V6 power combine to give boaters outstanding performance.
Features
• Multi-Point Sequential Electronic Fuel Injection
• Suzuki Selective Rotation
• O2 Sensor Feedback Control System
• Suzuki Precision Control System
• Suzuki Lean Burn Control System
• Variable Valve Timing System
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Spherical Bore Throttle Body
• Water in Fuel Warning System
• Suzuki Easy Start System
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Troll Mode
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Streamlined Gear Case
• Two-way low water inlet
• Speedometer Pickup in Gear Case

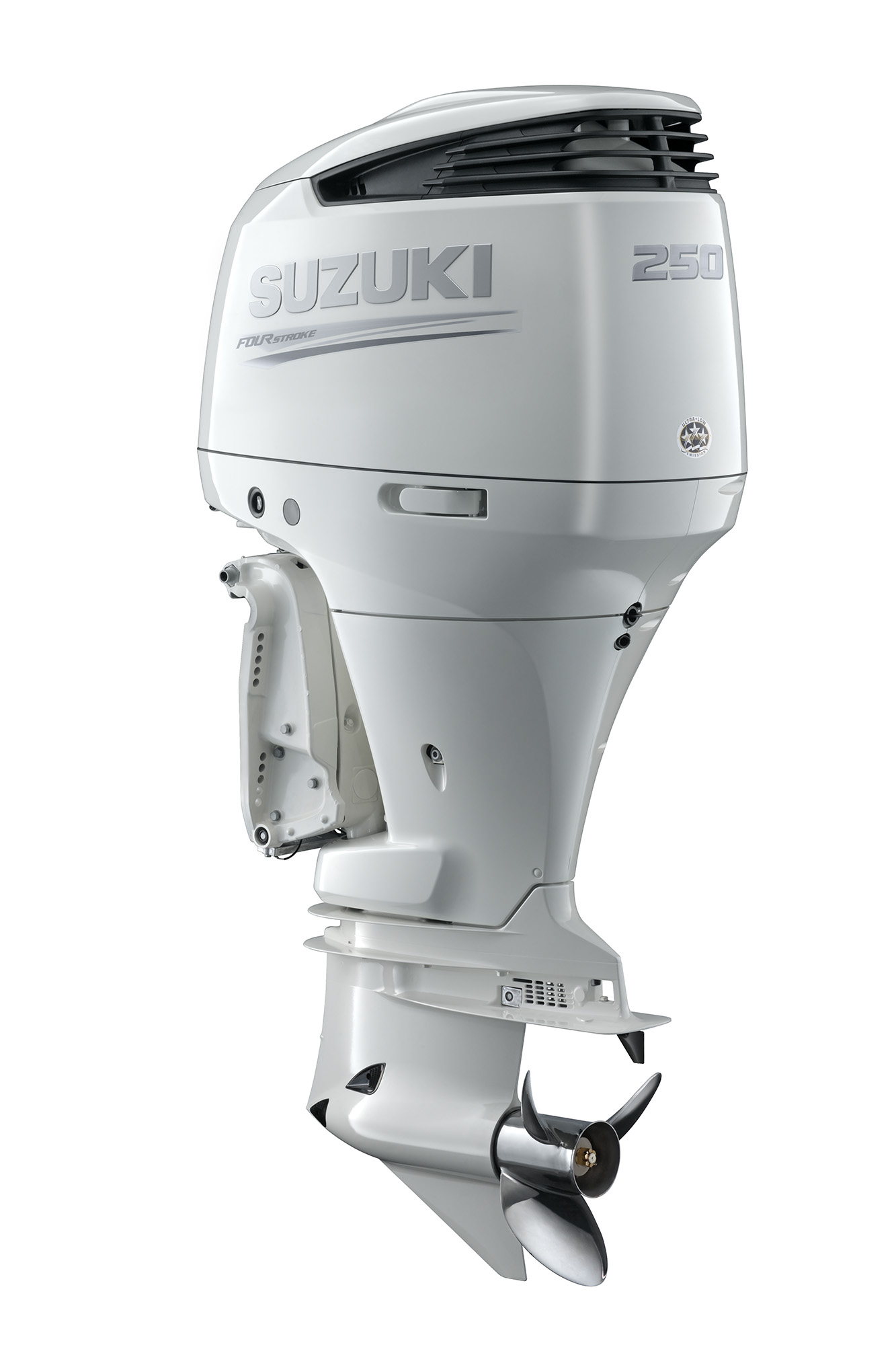

• Standard Color is Shadow Black Metallic-Now Available in Cool White
• Suzuki Anti-Corrosion System
Specifications
• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height (inches): X: 25 XX: 30 With Suzuki Selective Rotation
• Starting System: Electric-Suzuki Start System
• Weight LBS: X 639, XX 659
• Engine Type: DOHC 24-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection wth Lean Burn and Oxygen Sensor
• No. Of Cylinders: V6 (55°)
• Piston Displacement inches (cc): 245.6 (4028)
• Bore X Stroke Inches (mm): 3.81 x 3.46 (98 x 89)
• Maximum Output HP: 250
• Operating Range (RPM): 5700-6300
• Steering: Remote
• Troll Mode: Optional Troll Mode-See Dealer
• Oil Pan Capacity quarts (liter): 8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 12V 54A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.08:1
• Standard Propeller: Optional See Dealer
• Propeller Selection: 17-27.5
DF250APX2
25″ shaft, Black Cowling, Standard or Counter
DF250APXW2
25″ shaft, White Cowling, Standard or Counter
DF250APXX2
30″ shaft, Black Cowling, Standard or Counter
DF250APXXW2
30″ shaft, White Cowling, Standard or Counter
